Sundyne

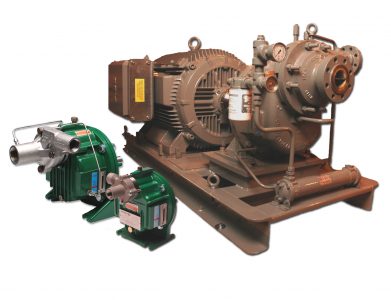

Sunflo

Sunflo high-pressure internal gear driven centrifugal pumps have high-head, low flow technology for general industry applications. Applications include boiler feeds, reverse osmosis, NOx suppressions, washdown, condensate return, and many other applications.  They are available in close-coupled, frame-mounted, or base plate configurations.

• Flows up to 550 GPM
• Pressures up to 2,285 PSI
• Temperatures up to 350° F

Sunflo P-1500 Industrial Grade Pump

• Flows to 33 gpm (6 m³/hr)
• Heads to 1,300 ft (277 m)
• Maximum Power 10 HP, 7 kW
• Maximum Suction Pressure 200 psi, (14 kg/cm²)
• Minimum NPSH
• Temperature Range -50 to 300°F (-46 to 149°C)

Sunflo P-2500 Industrial Grade Pump

• Flows to 180 gpm (40 m³/hr)
• Heads to 2,600 ft (544 m)
• Maximum Power 75 HP, 55 kW
• Maximum Suction Pressure 250 psi (18 kg/cm²)
• Minimum NPSH
• Temperature Range -50 to 300°F (-46 to 149°C)

Sunflo P-3000 Industrial Grade Pump

• Flows to 500 gpm (91 m³/hr)
• Heads to 4,200 ft (1,280 m)
• Maximum Power 250 HP, 186 kW
• Maximum Suction Pressure 350 psi (25 kg/cm²)
• Minimum NPSH
• Temperature Range -50 to 350°F (-46 to 177°C)

NEW HIGH POWER P-3400 Industrial Grade Pump

• Flows to 550 gpm (125 m³/hr)
• Heads to 5,280 ft (1,585 m)
• Maximum Power 400 HP, 293 kW
• Maximum Suction Pressure 350 psi (25 kg/cm²)
• Minimum NPSH
• Temperature Range -50 to 350°F (-46 to 177°C)

SundWASH Washdown Pumps

All plants have cleaning requirements, and none are more stringent than those faced by plant, maintenance & sanitation managers in the food processing industry.  Globally, there are thousands of food & beverage processing facilities that require high pressure wash-down capabilities for cleaning & sanitation, odor control, dust suppression, deboning & scale removal, and for a wide range of processing applications.

Most plants utilize a central, high-pressure cleaning system that allows multiple operators to clean faster, conserve water and use fewer chemicals.  For wash-down applications, high pressure is the key to efficiency.  The ability to boost pressure on demand enables operators to get the job done with less water, which saves money.

Applications:

Cleaning and Sanitation

• Belt Cleaning
• Equipment Washdown
• Surface Cleaning
• Central Cleaning Systems
• Tank Cleaning
• Barrel Cleaning

Processing

• Fish Scale Removal
• Crab Cleaning
• Poultry Deboning
• Livestock Processing
• Hatchery

High Pressure Mist

• Greenhouse Misting
• Odor Control
• Dust Suppression
• Livestock and Poultry Cooling

HMD Kontro

HMD Kontro Sealless Magnetic Drive Pumps

Since pioneering the sealless magnetic drive pump in the 1940’s, HMD Kontro have been at the forefront of the liquid handling industry providing pump products with high performance, superior reliability, increased safety and
full industry compliance.

An HMD Kontro sealless pump is a conventional centrifugal pump without mechanical seals. Using modern engineering and technologies developed over decades of experience in the handling of harsh and hazardous fluid
applications, HMD Kontro pumps offer numerous benefits:

• Total fluid containment providing better environmental protection & operator safety
• No seals or seal support systems simplifying procurement, installation, operation and maintenance, reducing lifecycle costs
• World class sealless pump technology that offers the highest levels of robustness in the field, increasing Mean Time Between Failure (MTBF) and plant uptime
• Compliance to industry standards and global availability

Chemical Service Pump – CSA/CSI

• Flows to 1,408 gpm (320 m³/hr)
• Heads to 490 ft (150 m)
• Design Pressure: 275 psi (18.9 bar) ASME; 232 psi (16 bar) ISO
• Temperature Range -40 to 500°F (-40 to 260°C)

General Service Pump – GSA/GSI

• Flows to 1,408 gpm (320 m³/hr)
• Heads to 490 ft (150 m)
• Design Pressure: 275 psi (18.9 bar) ASME; 232 psi (16 bar) ISO*
• Temperature Range -40 to 500°F (-40 to 260°C)

*360 psi (25 bar) & 710 psi (49 bar) designs available for selected models

General Transfer Pump – GTA/GTI

• Flows to 115 gpm (26 m³/hr)
• Heads to 125 ft (38 m)
• Design Pressure: 275 psi (18.9 bar) ASME; 232 psi (16 bar) ISO
• Temperature Range -40 to 500°F (-40 to 260°C)

LMV/BMP Series

The Sundyne LMV/BMP series pumps are single stage, integrally geared process pumps. Despite their single stage design, they have multi-stage performance. Custom hydraulics can be made to meet your specific application. The large shaft, short bearing span, and dynamic balancing promote long life at optimal performance. Some applications for these pumps are in the petroleum refining and petrochemical production, oil and gas processes, power generation, and many others. ASME B16.5 600# RF flanges are standard and 900# RF flanges are optional on select models. Conform to API-610 standards.

• Flows up to 1,100 GPM
• Pressures up to 2,731 PSI
• Temperatures from -200° to 650° F

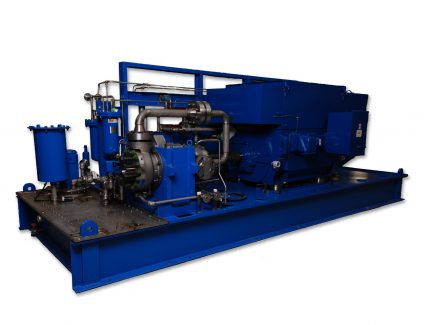

HMP Series

The Sundyne HMP series features superior low specific speed hydraulics to deliver maximum efficiency with a compact design. A single gear box with up to three stages makes HMP pumps available in scalable configurations. They can run continuously for up to 5 years with the API-610 standards.  Common applications for the low flow, high pressure, end-suction, horizontal, high-speed, two-stage centrifugal pumps are fertilizer, urea, and PTA production. The HMP is driven by an integral single helical or spur gear mesh speed-increasing gearbox, providing compactness, design simplicity and optimized reliability. The open impeller blades with a throat diffuser allows for better particulate handling.

• Flows up to 1,585 GPM
• Pressures up to 6,503 PSI
• Temperatures up to 550° F
• Rotational Speeds up to 29,000 RPM

PPI Diaphragm Compressors

PPI (Pressure Products Industries) sealless reciprocating diaphragm compressors deliver non-contaminating compression of any gas.  They meet the demands of the highest industry standards for sealless positive displacement machines including: durability, reliability, heavy duty rugged design, long trouble free operation, and overall an exceptional value.  Compressors are available in multiple material configurations and size configurations to meet the need of the individual application.  The models offered include the 2L, 1500, 4L, 7L and 9X series.

• Flows up to 146.6 FT³/MIN
• Pressures up to 16,750 PSI
• Temperatures up to 450° F

Marelli SMK Series

The Marelli SMK pump series are end suction centerline mounted, radial split, overhung horizontal single and double volute centrifugal pumps. SMK OH2 full complies with API-610 and ISO 13709 standards. Common applications include refineries, petrochemical plants, crude oil, reverse osmosis, and other heavy duty industry applications. There are a variety of custom options for high temperature, high section pressure, custom lubrication systems, special coking services, custom baseplate designs, among others. The SMK pump has ANSI B16.5 300#RF, 600#RF and 900#RF flange connections.

• Flows up to 7000 GPM
• Pressures up to 520 PSI
• Temperatures from -238° to 842° F
• Rotational speeds up to 4,000 RPM

Marelli KSMK Series

The Marelli KSMK pumps are horizontal radially split one and two stage, between bearings, centerline mounted, double volute centrifugal pumps that comply with API 610 and ISO 13709 standards. Common applications include refineries, petrochemical plants, reverse osmosis, water injection, and other high pressure high-duty industry applications. A wide range of impeller options are available for optimal efficiency. There are a variety of custom options for high temperature, high section pressure, custom lubrication systems, special coking services, custom baseplate designs, among others. ANSI B16.5 300#RF, 600#RF and 900#RF flanges and their required serrations are standard; ASME/DIN/lSO/JIS flanges also are available.

• Flows up to 16.000 GPM
• Pressures up to 1,040 PSI
• Temperatures from -238° F to 842° F
• Rotational speeds up to 4,000 RPM

Marelli DVMX Series

The Marelli DVMX BB3 type pumps series are horizontal axial split case multi-stage pumps with opposed mounted impellers running heavy duty double volute casings, nearly center line mounted, that complies with API 610 and ISO 13709. Applications include refineries, desalination plants, water injection platforms, condenstate extraction, oil and gas, and many other high pressure applications. Optional features include requirements for high temperature, high pressure, lubrication systems and baseplate designs and others. ANSI B16, 600#RF, 900#RF and 1500#RF flanges and their required serrations. ASME/DIN/ISO/JIS flanges are also available.

• Flows up to 8,000 GPM
• Pressures up to 3,078 PSI
• Temperatures up to 410° F
