Donaldson Hy-Pro Filtration

Filter Element Upgrades

Hy-Pro offers over 250,000 DFE-rated (Dynamic Filter Efficiency specification) filter element upgrades for all major filter manufacturers and OEMs plus enhanced designs NSD (non-spark), Dynafuzz (stainless fiber media), lube specific, and water removal.

CFU Compact Filter Unit

The CFU series portable Compact Filter Unit is designed for small gearboxes or reservoir conditioning and fluid transfer.

• Pneumatically-driven pump option for explosion proof environments
• Utilized cost-effective disposable spin-on filters containing high-efficiency glass filter media and/or water absorbing media
• Filter media sized efficiently based on flow rate needed; typically 5 to 8 GPM

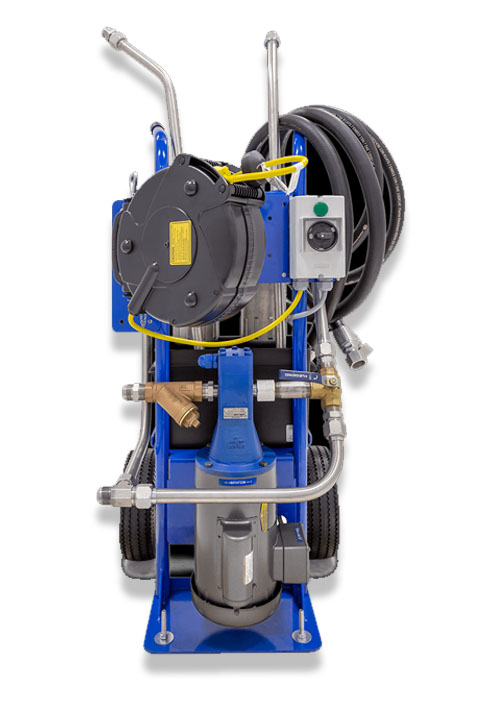

FC Spin-On Filter Cart

Hy-Pro FC filter carts feature two DFE rated Hy-Pro spin-on elements in series to condition hydraulic fluids from the first pass through the system.

• Media options available down to 1 micron absolute with water removal and stainless mesh media options
• Flow rates of up to 22 GPM with a variety of power options
• Ideal for hydraulic fluid conditioning and cleaning oils during fluid transfer

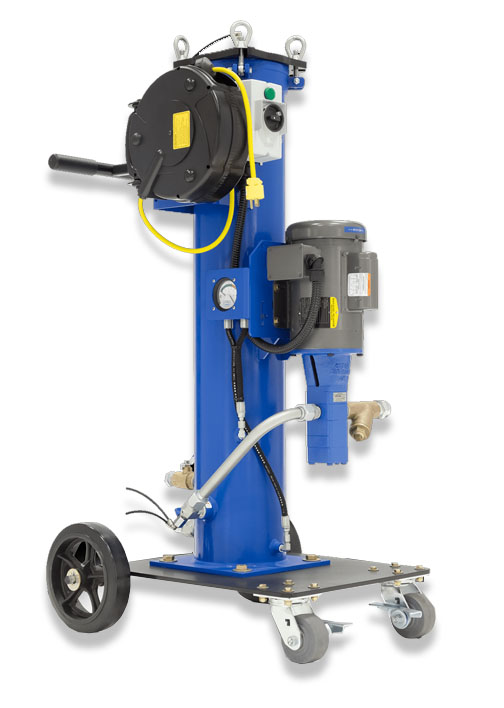

FCL High-Viscosity Filter Cart

Hy-Pro FCL filter carts are fully self-contained like the FC Filter Carts but are more ideally suited for high viscosity lube-oil, highly contaminated fuel, and hydraulic oil. They feature coreless filter elements with long lifespans, non-shredding wheels, multiple sample ports and are entirely customizable. Customizable options include pneumatic and explosion-proof models.

DFH High Pressure Duplex Filter

DFH high pressure duplex filter assemblies with operating pressures up to 3000 PSI.

• Flow rates up to 58 GPM utilizing DFE-rated glass media elements
• Duplex design allows for element servicing without interrupting continuous hydraulic system operation
• Ideal for critical hydraulic systems such as HPU pump discharge, power gen EHC systems, wind turbine and marine hydraulics

DFN Low Pressure Duplex

Hy-Pro DFN duplex operating pressures up to 888 PSI.

• Flow rates up to 58 GPM with DFE-rated glass media element options and higher with wire mesh media
• Duplex design allows for element servicing without interrupting continuous hydraulic system operation
• Ideal for 24-7 critical systems such as turbine seal oil, boiler feed pumps, and FD-ID fan lube oil
• An ideal upgrade to AutoKlean-style filter assemblies

LF/LFM High Flow Filter

LF / LFM high flow filter assemblies feature Hy-Pro DFE rated coreless filter elements in single or multi-round configuration.

• Available in coated steel or stainless steel with design pressure options up to 1500 PSI
• Assemblies are suitable for any fluid covering a wide range of applications from high viscosity lubricating fluids to diesel fuel
• Media options down to 1 micron absolute glass, water removal and stainless steel mesh

PFH High Pressure In-Line Filter Assemblies

Hy-Pro’s PFH14, PFH55, and PFH167 pressure filters are designed to protect sensitive components in hydraulic circuits. Install the series upstream of specific components or directly after the pressure pump in smaller systems to minimize risk of failure and costly system downtime.

Ideal for use as a power unit pump discharge filter or a pilot filter, and to protect components that are sensitive to particulate contamination and require clean pressurized fluid for reliable operation, such as servo valves.

Max Operating Pressure: 6090 psi (420 bar)

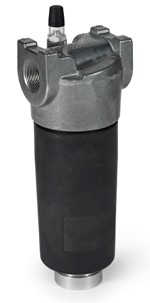

MF3 Medium Pressure In-Line Filter

Hy-Pro MF3 medium pressure in-line filter with operating pressure up to 1200 PSI.

• Features Hy-Pro DFE rated filter elements with media options down to 1 micron absolute, water removal and stainless steel mesh
• MF3 is ideal for mobile equipment, hydrostatic charge circuits and is an excellent alternative to spin-on assemblies in off-line or return-line applications
• MF3 is also a port to port dimension drop-in for 40CN housings and HK04 / HMK04 spin-on assemblies

Spin-On Filter Assemblies

Low pressure spin-on assemblies with operating pressure to 200 PSI are available in single and dual head designs.

• Can be sized to handle flow rates up to 100 GPM
• Hy-Pro DFE rated elements are available in a wide range of media options down to 1 micron absolute, water removal and stainless steel mesh
• Ideal for mobile equipment HPUs & low pressure return or off-line circuits

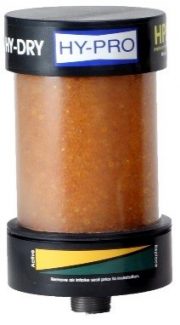

Hy-Dry Desiccant Breather

Hy-Dry desiccant breathers control moisture by adsorption and particulate mechanically down to 1 micron from entering reservoirs during air exchange.  Rugged designs are available high vibration mobile applications.

• A wide range of breather sizes and reservoir adaptors are available to enhance any reservoir
• Desiccant beads change color signaling that is time to replace the breather

Spin-On Breathers

Hy-Pro high efficiency high capacity spin-on breathers prevent contaminant ingression into reservoirs

• Ideal for mobile applications and to replace ineffective filler-breather caps
• Fluid contamination is the root cause of most hydraulic system failures and controlling airborne contamination is critical. The synergy of Hy-Pro fluid filter elements and Hy-Pro Spin-on breathers yields clean fluid and a healthy hydraulic system

Vacuum Dehydrators (*For Purchase or For Rental)

The Hy-Pro VUD series vacuum dehydrator optimizes the balance between heat, vacuum and process design to rapidly remove free, emulsified and dissolved water and gas.  Vac-U-Dry dehydrators are also equipped with high efficiency filtration to remove particulate contamination.

• Achieve and maintain water levels down to 10 ppm for any sized reservoir
• Regain control of high ingression conditions in hours instead of weeks or months

Applications include steel mill lube systems, turbine lube reservoirs, oil flushing and reclamation, bio-diesel polishing, paper machine lube oil, gearboxes, compressors and any other hydraulic or lube applications susceptible to water contamination in oil.

Systems available for up to 100 GPM for viscosities up to ISO VG1000 with many features that set the Hy-Pro unit apart including:

• programmable thermostat and low watt density heaters
• foam sensing and knockdown circuit
• dual tank auto condensate water drain for 24×7 continuous unattended operation
• high efficiency particulate filtration
• flexible design options for any application
• smart relay start-up and shut-down routines for easy operation
• 4 vacuum pump choices to design your optimum unit
• clear vacuum chamber and condensate tank covers allow you to see the performance

Additional contamination control technologies can be integrated into VUD such as turbine oil varnish removal, phosphate ester acid scavenging and gross free water removal by coalesce for the ultimate oil purifier or turbine oil conditioner.

Vac-U-Dry is available with a wide assortment of filter element media options to fit your specific application.

V1 Mini Vacuum Dehydrator (*For Purchase or For Rental)

The V1 mini vacuum dehydrator equipped with heater removes free and dissolved water from small reservoirs. This mini version of our VUD series machines is extremely portable and can operate on a 120VAC 1P 60Hz electrical circuit requiring < 20 Amps.

• The portability makes the V1 ideal for such applications as boiler feed pumps, FD & ID fans, ferries & workboats, and any other small reservoir plagued with water contamination

FCLVAW for AW Hydraulic Oils with Sludge & Varnish

Condition AW Hydraulic Oils with Sludge & Varnish Problems. Ideal for AW type hydraulic fluids where sludge build-up is causing valve stiction.

• High efficiency particulate removal (< 0.7m), water & insoluble sludge & varnish removal
• Prevent premature oil replacement and extend useful oil life
• Ideal for in plastic injection molding, steel mill and other hydraulic control applications

FSTO Turbine Lube Oil Varnish Removal

Ideal for Maintenance of Small Turbine Lube Oil & Compressor Reservoirs. Prevents varnish related servo valve failures on small gas turbines and compressor lube oil applications (i.e. gas transmission compressor units).

• Removes & prevent varnish deposits with ICB element technology (Ion Charge Bonding)
• Achieves & maintain MPC value < 20 (lower varnish potential)
• Lowers ISO codes to 14/12/9 with high efficiency post filter element
• Helps to extend life of anti-oxidant additives & prevent premature oil replacement

COD Diesel Fuel Conditioning Skid

Hy-Pro COD Diesel Conditioning skids rapidly remove water from diesel fuel.  Will achieve > 99% single pass water removal efficiency and high efficiency particulate filtration.

• Units available up to 200 GPM for high volume treatment of bulk diesel tanks
• Typical applications include diesel tank farm bulk fluid conditioning, tanker truck filling transfer and filtration, stand-by diesel storage tanks (hospitals, emergency response), and many more
• Diesel fuel cleanliness is more critical than ever with increasing combustion pressures and sensitivity of fuel injectors.  Keep diesel fluids clean for reliable and fuel efficient engine operation and to keep stand-by fuel reserves ready for service
