Dean Pump

RA Series Air Cooled Hot Oil Pump

The RA Series Pumps are cost effective, hot oil, thermal liquid, heat transfer pumps that feature a shaft mounted fan to provide air flow over the cooling fins of the pump. This air cooled design translates to no water cooling required for the bearings and mechanical seals. The RA series is designed to be ANSI interchangeable with three offerings RA2096, RA3146 and RA3186.  Thirteen sizes are available in ductile iron construction.

• Flows up to 1,100 GPM
• Pressures up to 185 PSI
• Temperatures to 650° F

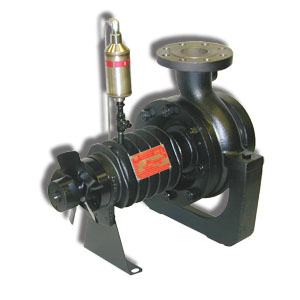

RWA Series Air Cooled Hot Water Pump

The RWA Series Pumps are heavy duty, high temperature pumps designed for use with hot water, ethylene glycol, propylene glycol, and triethylene glycol, in boiler feed, steam condensate, HVAC and other heat transfer applications. Pumps include a shaft mounted fan to provide airflow over the cooling fins of the pump. This air-cooled design translates to no external water cooling required  for the bearings and mechanical seal.   The RWA series is designed to be ANSI interchangeable with three offerings RWA2096, RWA4166 and RWA4206.  Thirteen sizes are available in ductile iron construction

• Flows up to  1,100 GPM
• Pressures up to 185 PSI
• Temperatures to 400° F

Vertical Inline Pumps

DeanLine Series Industrial Inline Pumps are excellent for process plant pump applications for capacities and heads less than traditional ANSI pumps. This space saving design is ideal for tight floor layouts or piping configerations.  Two pump sizes are available in cast iron and stainless steel construction.

• Flows up to 95 GPM
• Pressures up to 57 PSI
• Temperatures to 220° F

pH Series

The pH series chemical process pumps are built to ASME/ANSI B73.1 dimensions. Twenty-eight sizes are available in ductile iron, stainless steel, CD4MCu and Alloy 20 construction. Additional higher metal alloys (Hastelloy B or C, titanium, etc.) are available upon request.  Additional features of the pH Series chemical pumps include: integral one-piece casing flanges, fully open impeller, heavy duty shaft / bearings and a rigid bearing housing.  Models available include pH2110, pH2140, pH2170/pH3170 and pH2180 series.  Other configurations include pHP (Self-priming process pump), pHV (vertical sump pump) and M300 (magnetic drive ANSI chemical pump).

• Flows up to 3,200 GPM
• Pressures up to 347 PSI
• Temperatures to 500° F

R4000 Heavy Duty Process Pump

The R4000 Series Pumps are the single most applied pump for high temperature heat transfer service. These heavy duty, centerline supported, chemical, petrochemical, and refinery style process pumps are available in twenty-seven sizes in steel and stainless steel construction.  Two stand out features are a closed impeller and heavy duty shaft / bearings that allow this pump to be the most applied pump for high temperature service.

• Flows up to 6,500 GPM
• Pressures up to 347 PSI
• Temperatures to 850° F

R5000 Series Heavy Duty API Pump

The R5000 Series Pumps are chemical, petrochemical, and refinery API type high temperature process pumps. Twenty-seven sizes are available in steel and stainless steel construction.  Stand out features for this pump include centerline supported casing and large taper bore seal cavity that allows for extended life in critical service.

• Flows up to 6,000 GPM
• Pressures up to 347 PSI
• Temperatures to 850° F

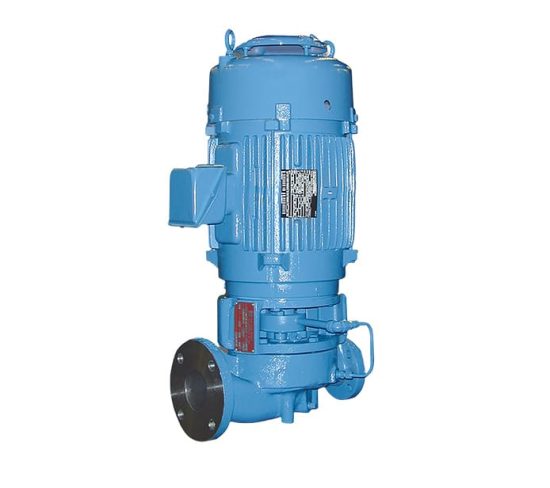

DL Series High Temperature Inline Pumps

Dean DL Series High Temperature Inline Pumps are designed for high temperature chemical process applications. With corrosion-resistant construction materials, space-saving configurations, and a close-coupled design that eliminates alignment issues, the DL Series High Temperature Inline Pump is engineered for maximum operational performance, reliability, and durability for dependable service.

The DL Series High Temperature Inline Pump offers simple installation and easy maintenance, while delivering maximum service life in seven available sizes and corrosion-resistant material construction.

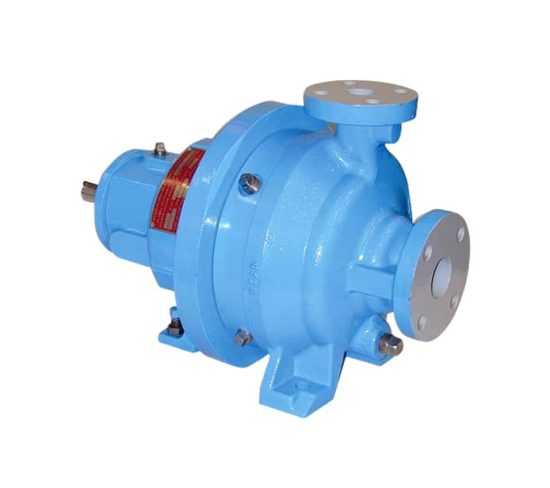

M300 Series Magnetic Drive ANSI Chemical Process Pumps

Dean M300 Series Magnetic Drive ANSI Chemical Process Pump is custom designed to efficiently meet your specific needs for a sealless pump to handle hazardous toxic fluids. Our Series M300 pump utilizes a synchronous drive system with permanent rare earth magnets to eliminate mechanical seals and virtually end pump shaft leakage, delivering optimal performance and efficiency for smooth operation.

Each pump is corrosion-resistant for your most demanding process services and designed to meet the stringent requirements for sealless pumps, as demanded by the process industry.

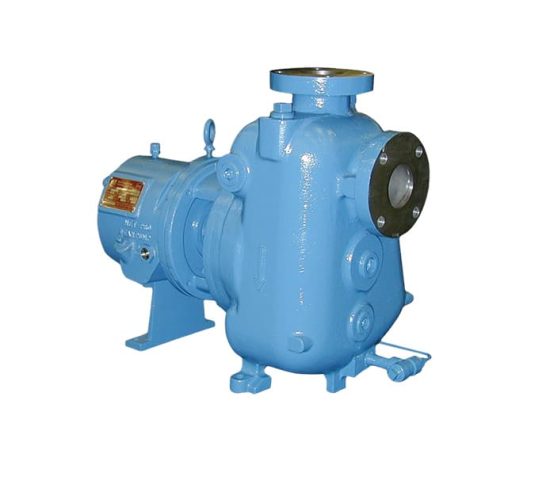

pHP Series Self-Priming Chemical Process Pump

Our Dean pHP Series Self-Priming Chemical Process Pumps are custom engineered to meet the demands of a wide range of chemical and industrial applications. Featuring excellent priming times, power frame interchangeability with the pH Series (ANSI) chemical process pumps, and suction-lift up to 20 feet, our pumps are designed to provide high reliability, optimal performance, and easy maintenance.

Dean manufactures the highest-quality chemical process and high-temperature metallic centrifugal pumps that have earned a global reputation for reliability and durability. Dean pumps are designed with meticulous care and can withstand the most caustic chemicals and extreme temperatures. A fine example of this attention to detail is our line of pHP Series Self-Priming Chemical Process Pumps.

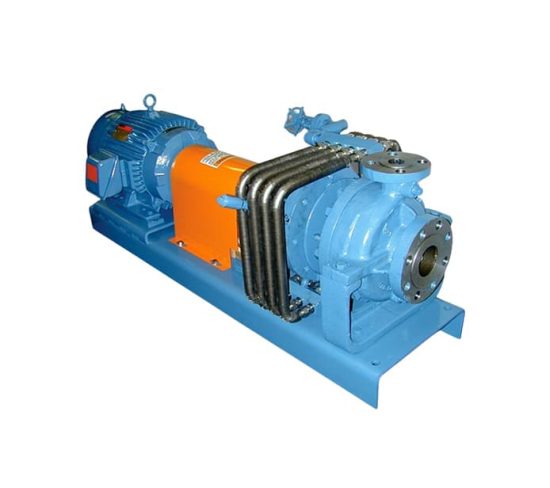

RMA5000 Series Magnetic Drive Air Cooled Process Pumps

Our Dean RMA5000 Series pumps are sealless, air-cooled or water-cooled, heavy-duty process pumps that are designed to provide efficient, durable, and dependable service for your specific application needs, while meeting stringent environmental standards.

The RMA5000 Series Magnetic Drive Air Cooled Process Pump is utilized for chemical processing, petrochemical, power plant, plastics, heat transfer, pharmaceutical, and food processing applications. The air fin cooling design reduces heat flow from process fluid to magnets, optimizing performance and reliability. With seventeen available sizes, and corrosion-resistant construction, the RMA5000 Series pumps represent the highest quality and most cost effective sealless heavy duty process equipment available today.
