Blackmer

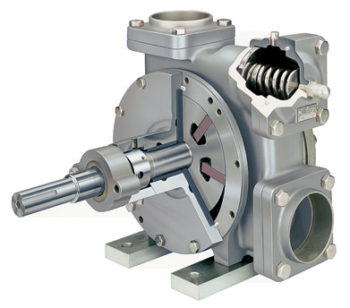

Sliding Vane Pumps

These pumps have a number of vanes that are free to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, centrifugal force, push rods, and/or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing forming pumping chambers.  As the rotor revolves, fluid flows into the area between the vanes (pumping cambers) when they pass the suction port. This fluid is transported around the pump casing until the discharge port is reached. At this point the fluid is squeezed out into the discharge piping.

• Flows up to 2,200 GPM
• Pressures up to 200 PSI
• Temperature up to 500° F
• Viscosities greater than 21,000 cSt

There are several different series of Blackmer Sliding Vane Pumps including:

Cavitation Series

• LGL: Ductile Iron, UL-Listed pumps for LPG or NH3 transfer applications
• CRL: Ductile Iron pumps for liquid CO2 Transfer applications
• SGL: Ductile iron pumps for liquefied gas transfer applications

Heavy Duty Line

• GNX/GNXH: Ductile iron pumps for non-corrosive industrial liquids and petroleum products
• GC: Cast Iron pumps with integral gear reducers for clean, non-corrosive industrial liquids and petroleum products
• X: Cast Iron pumps for clean, non-corrosive industrial liquids and petroleum products

Iron Line

• TX/TXH: Cast iron transport pumps for clean, lubricating liquid petroleum products, biofuels or solvents.
• X: Ductile iron rotary vane pump designed for the blending, loading, unloading and transfer of various substances
• GNX: Alignment-free reduced-speed positive displacement pump for non-corrosive liquids and petroleum products
• TXV: Cast iron transport pumps for high temperature and high viscosity applications
• XL: Ductile iron pumps with liners for use in refineries, lube oil plants and general industry for processing, filing and transfer applications
• NP: General purpose positive displacement pumps ideal for handling a wide variety of clean non-corrosive liquids

Magnetic Line

• MAGNES: Magnetic drive pumps that provide a leak-free pumping solution for difficult to seal liquids
• SMVP: Stainless Steel pumps with seal-less magnetic couplings to meet the need for zero shaft leakage when handling expensive, hazardous or hard to seal fluids

Stainless Line

• SNP/SX: Stainless Steel pumps for a wide variety of corrosive or caustic fluids
• STX: Stainless Steel transport pumps for high temperature and high viscosity applications

Specialty Line

• Sliding Vane Hand Pumps: Hand-operated vane pumps designed for easy, efficient operation in handling a wide range of liquids
• Dispensing Sliding Vane Pumps: Power-operated vane pumps for petroleum product dispensing systems
• Military Sliding Vane Pumps: Durable sliding vane pumps trusted by militaries around the world

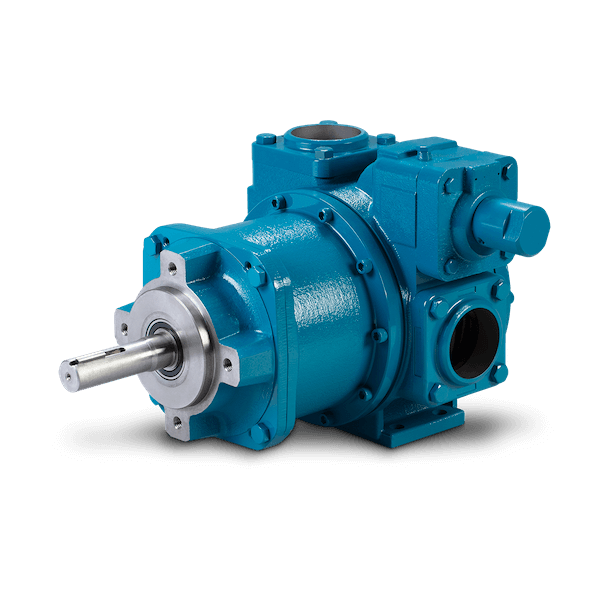

MAGNES Series Sliding Vane Magnetic Drive Pumps

MAGNES, the sliding vane magnetic drive pump by BLACKMER®, contains no dynamic seals and provides a leak-free pumping solution for difficult-to-seal liquids and any liquid that is expensive, valuable, dangerous or hazardous.

With 3- and 4-in models available in either iron (MI3, MI4) or stainless-steel (MS3, MS4) construction and flow rates up to 520 gpm (1,968 L/min), MAGNES Sliding Vane Pumps provide superior magnetic drive capabilities. Innate advantages of sliding vane technology provide a world class solution to the chemical market. MAGNES is a true self-priming pump, that will not need to be pre-flooded prior to start-up, and is well suited for continuous duty operation, since the pump has no cumulative dry run limit, providing operators the confidence that dry run events will not result in catastrophic pump failure.

MAGNES offers numerous advantages of sliding vane technology such as self-priming, line-stripping, product recovery, dry-run capability, solids handling, thin/thick viscosity flexibility, easy maintenance and 70% to 90% pump efficiencies. These advantages make MAGNES an effective alternative to centrifugal pumps.

Blackmer G Series Internal Gear Pumps

The Blackmer G Series Positive Displacement Internal Gear Pumps have the durability, flexibility and efficiency to handle all fluid handling needs. Offered in jacketed construction, to maintain temperature and integrity during operation, and non-jacketed versions, the Blackmer G Series is available in cast iron, carbon steel and stainless steel materials. The Blackmer G Series is designed to be completely interchangeable with 95% of the mechanically sealed, packed and seal-less competitive gear pumps on the market. Replacing an existing gear pump with a G Series usually requires no modifications to the piping, driver base plate and or coupling, while flow rates remain unchanged. This makes the Blackmer G Series a high quality, reliable alternative to competing models.

• Max Pressure
• Cast Iron – 200 PSI
• Carbon Steel – 200 PSI
• Stainless Steel -150 PSI

• Capacity
• 15 gpm to 500 gpm (3.4 m³/h to 113.6 m³/h)

• Max Temperature
• 650°F (343°C)

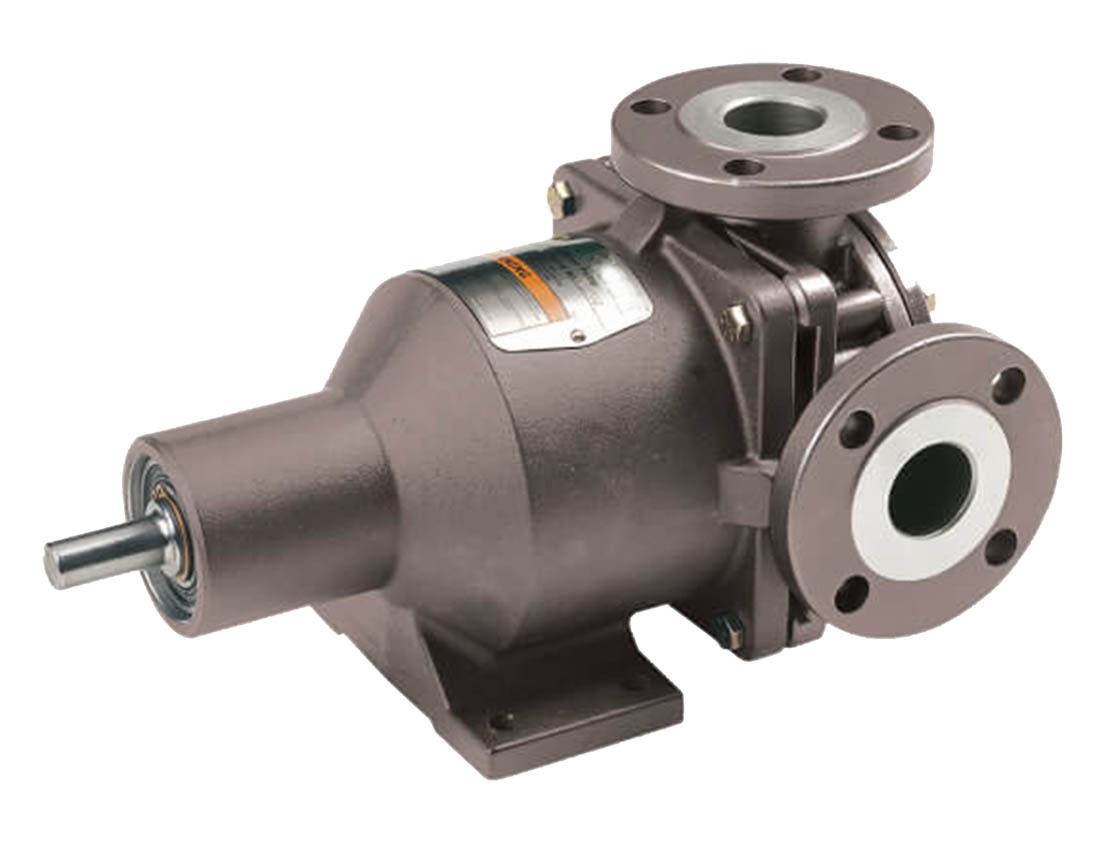

Blackmer E Series Magnetic Drive Gear Pump

The Blackmer E Series Magnetic Drive Gear Pumps are innovative, durable, and environmentally friendly. The unique between-the bearing support design of the Blackmer E Series pump eliminates leaks and reduces mechanical wear, helping to increase the safety of on site personal and the environment. Available in ductile iron, carbon steel and stainless steel material options, the Blackmer E Series has a wide chemical compatibility range. The Blackmer E Series is designed to be completely interchangeable with 95% of the packed, mechanically sealed, and seal-less internal gear pumps on the market. Replacing an existing pump with a E Series usually requires no modifications to the piping, driver base plate and or coupling, while flow rates remain unchanged. This makes the Blackmer G Series standout from other competing models.

• Max Pressure
• Cast Iron – 200 PSI
• Carbon Steel – 200 PSI
• Stainless Steel -150 PSI

• Capacity
• 15 gpm to 500 gpm (3.4 m³/h to 113.6 m³/h)

• Max Temperature
• 500°F (260°C)

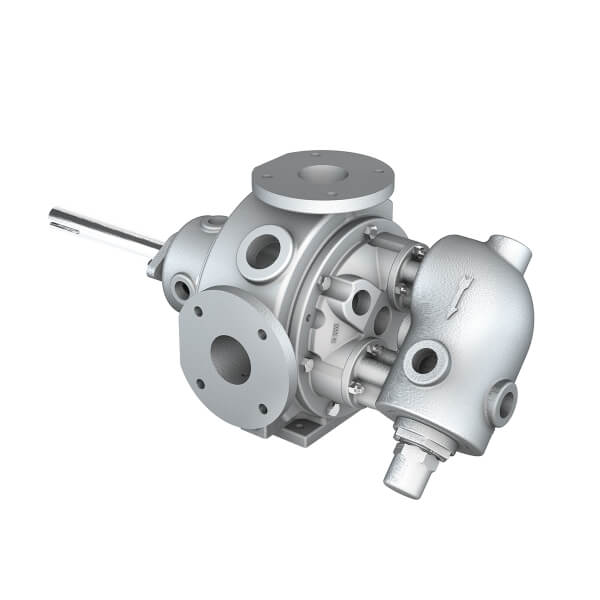

Blackmer V Series Asphalt Pump

The Blackmer V Series asphalt pump is robust and adaptable, meeting the demands of challenging asphalt applications. The unique internal gear pump design features often meet and exceed expectations when pumping asphalt. The V Series pump is ideal for transfer of asphalt and bitumen products, roofing applications, hot-mix applications, and emulsion applications. Featuring up to 35% more jacket surface area than the competition, The V Series innovative design improves system reliability by being able to utilize the jacket and relief valve simultaneously. Also, the V-Series jacketing being behind the rotor helps prevent premature pump failure and the large surface area on the pump case and PRV enables uniform heating whether using steam or hot oil. The V Series parts are interchangeable with the Viking 34 Series asphalt pump, so it can be used as a drop-in replacement and has design enhancements that improve reliability. Another great feature with the Blackmer V Series are it’s rotatable flanges. The rotatable flanges allows the operator to use both right handed and left handed orientations as needed without additional lead times and costs associated with left hand configuration pumps. The Blackmer V Series asphalt pump comes in high strength ductile iron with other hardened material component options to help improve pump life.

• Available Materials: Iron
• Max Temperature: 450° F Max
• Capacity 90 GPM to 450 GPM
• Max Pressure: 100 PSI

Centrifugal Pumps

Blackmer System One Centrifugal pumps are heavy duty ANSI pumps designed for low maintenance in the toughest and most demanding applications.  The design is built around the seal and bearings, where 90% of pump failures occur and with heavy duty bearings and shaft, the combination creates one of the longest lasting pumps in the industry.  System One buts have many different material combinations and seal options to fit almost any application.

• Flows up to 4,500 GPM
• Pressures up to 215 PSI

Pumps offered in the System One series:

• Frame S Centrifugal Pumps: The Frame S Pump is the heavy duty alternative to standard small frame pumps which can easily become overstressed when operated off the best efficiency point of its performance curve. The Frame S Pump provides mid-frame strength and reliability in small frame space. It can be installed in the same space, on the same baseplate, and with the same piping as conventional small frame pumps.
• Frame A Centrifugal Pumps: System One Frame A Pump is the pioneering process pump with the built-in technology to get the most from seal and bearing life.
• Frame M Centrifugal Pumps: Engineered reliability design incorporates industry-proven features that extend seal and bearing life and lower overall cost of ownership. Solid shaft with reduced overhang provides superior resistance to deflection. Shaft stiffness ratio (L3/D4) of 19 is the lowest for any pump in this size range. Only large frame pump fully C-Frame/D-Flange capable. Accepts motor frame sizes up to 449TSC or 315L
• LD17 Centrifugal Pumps: The LD17 Pump’s solid shaft (no sleeve) conquers vibration and greatly extends seal, bearing and shaft life. It resists the forces of destructive vibration far better than any other general process pump, reducing costly shutdowns. Its oversized angular contact thrust bearings are standard for high thrust capability and eliminate any axial movement of the shaft. With minimal bearing overhang and the lowest L3/D4 stiffness ratio in the industry, the LD17 provides superior resistance to deflection. Available with C Frame Adapter, providing automatic motor alignment. Available innovative Retrofit Power Ends and Large Bore Seal Chambers bolt directly to existing pumps to provide greatly extended seal and bearing life.
• Vortex Centrifugal Pumps: The System One Vortex Pump provides a solution to difficult pumping problems such as sludges and slurries with large particle solids, materials with entrained air, stringy or fibrous materials. It is designed to fit the standard System One and LD17 Power Ends and includes all the features and benefits of our System One Pump.
• High-Temperature Series: The pre-configured Blackmer Centrifugal High Temperature Series elevates the maximum temperature limits for Frame A and Frame M Centrifugal Pumps. With the introduction of the 450°F Line and 650°F Line, these pumps now exceed the standard temperature limit of 400°F (204°C), providing robust options for high-temperature applications.

LGL Series Sliding Vane Pumps

Propane and ammonia service and transfer applications can be extremely volatile and dangerous. The safety-focused, Blackmer LGL Series Sliding Vane Pumps are Underwriters Laboratories (UL) listed for use in propane and ammonia (NH3) service and transfer applications. The rock-steady, efficient, sliding vane design provides a consistently high-performance level, simple operation, and low overall maintenance. The LGL has replaceable end discs, liners, and vanes, so the pump can function as if it just came from the factory all while never having to remove the pump casing from the piping system. The LGL Series excel at several applications including, LPG, Butane & Anhydrous Ammonia, Multiple-Station Cylinder Filling, Multiple Bottle Filling and Small transfer.

LG1 Series: propane transfer pump for cylinder filling, small volume motor fueling and supplying small vaporizers.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: LGB1 & LGF1: 5 – 8 gpm (18 – 30 L/min), LGB1P & LGF1P: 6 – 13 gpm (22 – 49 L/min)
• Available Materials: Ductile Iron

LGRL1.25, LGL1.25, LGL1.5 Series: Blackmer® LGRL and LGL propane pumps are ideal for various liquid propane applications, including motor fueling, multiple-station cylinder filling and a variety of small transfer jobs.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: LGRL1.25 & LGRLF1.25: 10 – 16 gpm (38 – 60 L/min), LGL1.25 & LGLF1.25: 10 – 21 gpm (38 – 80 L/min), LGL1.5 & LGLF1.5: 15 – 33 gpm (57 – 125 L/min)
• Available Materials: Ductile Iron

LGLD2-4 Series: LGLD propane pumps are ideal for propane, LPG, butane and anhydrous ammonia applications including bulk plant service, multiple cylinder filling applications, vaporizers, bobtails and transports.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: LGLD2: 30 – 105 gpm (114 – 397 L/min), LGLD3: 60 – 201 gpm (227 – 761 L/min), LGLD4: 150 – 370 gpm (568 – 1,400 L/min)
• Available Materials: Ductile Iron

TLGLF Series: Flanged mounted propane truck pumps. UL listed for propane, butane and anhydrous ammonia.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: TLGLF3: 60 – 140 gpm (227 – 530 L/min), TLGLF3HD: 80 – 180 gpm (303 – 681 L/min), TLGLF4: 190 – 425 gpm (719 – 1608 L/min)
• Available Materials: Ductile Iron

LGL3021 Series: Ideal for filling a bobtail or transport truck. This pump is UL listed for use on propane, butane butane/propane mixes and anhydrous ammonia.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: 60 – 210 gpm (227 – 795 L/min)
• Available Materials: Ductile Iron

Autogas Sliding Vane Pump: Suitable for the rigors associated with Autogas applications.

• Max Working Pressure: 350 PSI
• Max Temperature: – 25° F to 240° F
• Nominal Flow Rate Range: LGLH2: 25 – 90 gpm (94 – 340 L/min)
• Available Materials: Ductile Iron

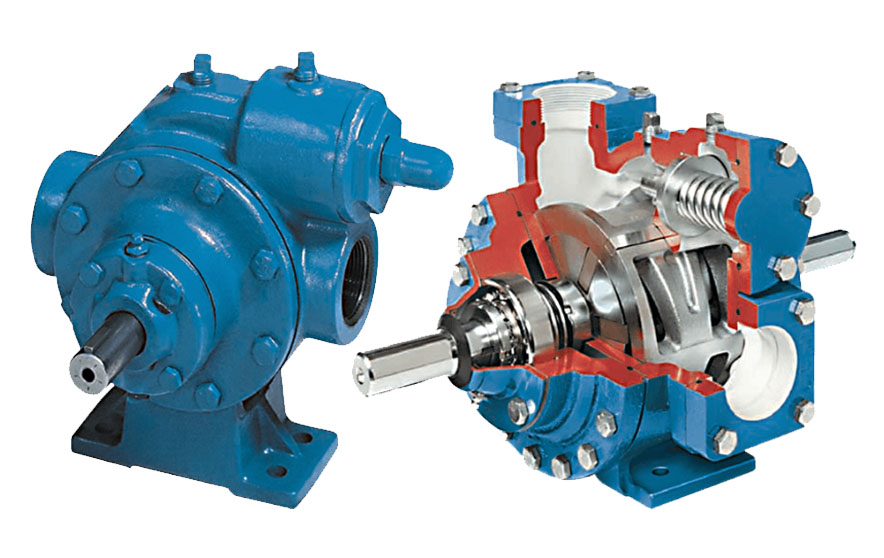

CRL Series Sliding Vane Pumps

Part of Blackmer’s highly touted cavitation line, the CRL High-Speed Sliding Vane Pumps (CRLR1.25, CRL1.25, CRL1.5 Pump Models) for liquefied CO2 applications offer capacities from 5-22 GPM and are perfect for loop systems and low volume transfer applications. All CRL models are conveniently designed for foot-mounting to a common baseplate and available with 1.25 or 1.5-inch tapped ports. The CRL Series is constructed with solid, ductile iron stainless steel and is equipped with an internal relief valve, replaceable casing liner and end discs for easy rebuilding of the pumping chamber if needed. The special CRLR1.25 inch model features a special liner which offers lower flow rates than the CRL 1.25 Inch pump.

The robust Blackmer CRL 2-4 Inch Sliding Vane Pumps are designed for bulk liquified CO2 transfer and circulation. They are ideal for several applications including industrial and food-processing systems, refrigeration, process plants and transport loading and unloading. Models are available in 2, 3, and 4-inch port sizes with capacities ranging from 25 to 300 U.S. GPM. Like the CRL 1.25-1.5 Models, the CRL 2-4 is also equipped with an internal relief valve, replaceable casing liner and end discs. All CRL 2-4 IN have a double-ended drive shaft arrangement, which allows the pump to be easily positioned for clockwise or counterclockwise shaft rotation. A unique cavitation suppression liner helps minimize noise, vibration and wear.

SGL Series Sliding Vane Pumps

Introducing the Blackmer® SGL Pump: The Future of Specialty Gas Service

Historically, specialty gas applications relied on two types of pumps: costly, complex options that offered reliability, and budget-friendly alternatives that often fell short. The Blackmer® SGL pump, part of our Cavitation Line, revolutionizes this landscape by delivering reliable, efficient performance across a wide range of conditions— from low temperatures to high pressures— at a fraction of the cost.

Key Features:

• Versatile Performance: Designed for liquid transfer and recirculation of refrigerants and liquefied gases, the SGL pump is available in six sizes with capacities ranging from 4 to 300 gpm (15 to 1,135 L/min).
• Robust Construction: Made from shock-resistant ductile iron, the SGL pump’s durable design provides exceptional resistance to both thermal and mechanical shocks, ensuring longevity and reliability in demanding environments.
• Cost-Effective Maintenance: With replaceable end discs and liners specifically engineered to suppress cavitation and reduce wear, Blackmer SGL pumps can be economically rebuilt to restore like-new performance.

Discover the efficiency, durability, and cost-effectiveness of the Blackmer SGL pump— your ideal solution for any liquefied gas application.

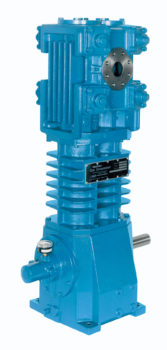

Reciprocating Gas Compressors

The single stage, reciprocating compressors create a low-pressure area in the pumping chamber when the piston moves from the highest point of the stroke to the lowest point. Gaseous product (at a higher pressure in the tank) moves into the pumping chamber. This volume of gas is then displaced when the piston moves to the top of the stroke. Equipped with high efficiency valves, ductile iron pistons, self-adjusting piston rod seals and other robust features, these compressors are designed to provide maximum performance and reliability under the most severe service conditions. They are also a critical component in the design of oil and gas vapor recovery units (VRUs).

• Flows up to 680 GPM (Liquid) or 125 CFM (Gas)
• Pressures up to 1,000 PSI
• Temperatures up to 350° F

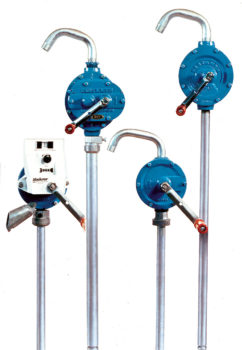

Sliding Vane Hand Pumps

Sliding Vane hand pumps have the ability to be positive displacement, self-priming, and non-pulsating flow pumps that be turned by hand.  Models ranging from standard sizes 210A, Class I & Class II handing F210A, viscous fluids 414B, as well as increased output 828B all for safe & controlled hand pump transfer applications. Blackmer has seven pump models of their hand pumps to meet all viscosity, flow, and varying application requirements.

• Flows up to 28 GPM
• Pressures up to 40 PSI
• Temperatures up to 300° F
• Viscosities up to 6,300 cSt
