Barmesa Pumps started operations in 1953, manufacturing small self-primer pumps, jet pumps and end suction centrifugal pumps for the rural market. During the 1970’s, new additions were made to the line of products and they started manufacturing submersible solids handling pumps as well as grinder pumps. Today, after 70 years, Barmesa Pumps has manufacturing facilities & distribution centers across America. Barmesa’s state-of-the-art manufacturing facilities have modern CNC machinery as well as sophisticated design and test capabilities. Barmesa serves markets such as marine, commercial, municipal, wastewater, water, industrial, construction, utility, chemical, OEM, irrigation, dewatering flood control, fire protection, as well as many other applications.

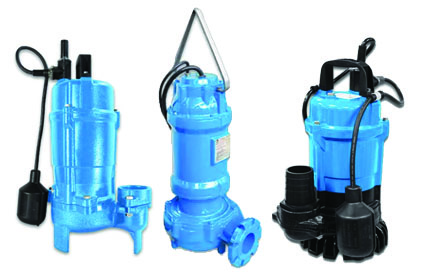

Submersible Pumps
Barmesa has submersible effluent pumps are ideal for residential, commercial and industrial drainage, decorative fountains and pumping sediment from small drains or a sump. More heavy-duty models, such as the X-Proof, have features such as an explosion-proof motor and the ability to handle spherical solids up to 4″. Barmesa has submersible pump options for demanding applications, such as drainage mining, tunneling, public works, floods, portable utility and more.
Self-Priming Pumps
Self-Priming Close Coupled Series
Suction & Discharge: 1½” NPT Female – 3″ NPT Female
Spherical solids handling: 3/8″ – 3/4″
HP: 1.5 – 10
RPM: 3500
Impeller: open, trash type, dynamically balanced. Cast iron ASTM A-48, class 30.
Shaft: 416 series stainless steel (certain models), 1035 cold rolled steel (certain models)
Motor: ODP or TEFC, C-face, footed, squirrel cage induction, class B or F insulation. Single and three-phase, 115/230/460 volts, 60 Hz.
Self-Priming Frame Mounted
BSP5CU
Suction: 1½” NPT, female.
Discharge: 1½” NPT, female.
Impeller: open, trash type, dynamically balanced. Cast iron ASTM A-48, class 30.

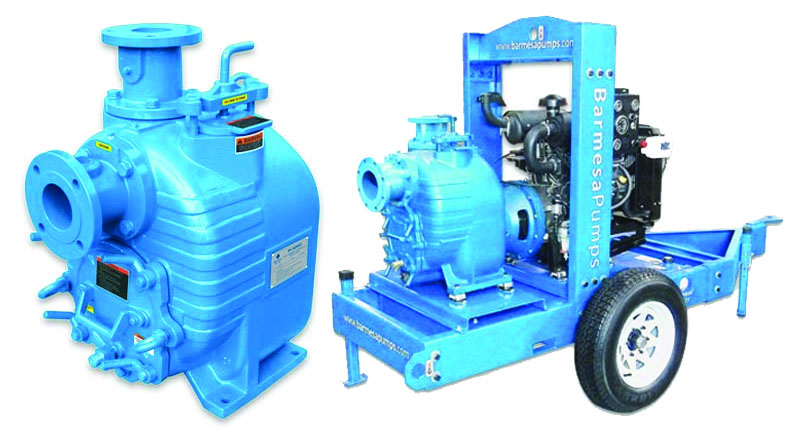

Self-Priming Solids Handling
Self-Priming Solids Handling Frame Mounted
Suction: 3″-8″
Discharge: 3″-8″
Spherical solids handling: 2½” – 3″
Impeller: 2 vane, open. Ductile iron no. 65-45-12.
Self-Priming Solids Handling Engine Driven
Suction: 4″-6″
Discharge: 4″-6″
Spherical solids handling: 3″
Impeller: 2 vane, open. Ductile iron no. 65-45-12.
Engine: Yanmar 4TNV88C-DYEM (Certain Model), Yanmar 4TNV98C-NYEM (Certain Model)
Type: 4 cylinder, 4 cycle, liquid-cooled diesel engine, final tier 4.
End Suction Centrifugal
End Suction Centrifugal Close Coupled
IA series
Suction: 1½” – 8″ NPT or flange
Discharge: 1″ – 6″ NPT or flange
HP: 2 – 125
RPM: 1750 & 3500
Impeller: enclosed, dynamically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
Frame sizes: 182JM to 405JM
IB series
Suction: 2″ – 3″ NPT, female.
Discharge: 1½” – 2½” NPT, female.
HP: 1 – 15
RPM: 1750 & 3500
Impeller: investment casting, statically balanced. Stainless steel 304.
Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
Frame sizes: 143JM to 254JM
IC1¼ series
Suction: 1½” NPT, female.
Discharge: 1¼” NPT, female.
HP: 1 – 3
RPM: 3500
Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
IC1½ series
Suction: 1½” NPT, female.
Discharge: 1½” NPT, female.
HP: 1.5 – 7.5
RPM: 3500
Impeller: 4 vanes, closed, statically balanced. Noryl®.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz
IC1½H series
Suction: 1½” NPT, female.
Discharge: 1½” NPT, female.
HP: 1 – 15
RPM: 3500
Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, class 30.
Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
1 & 3 phases, 60 Hz

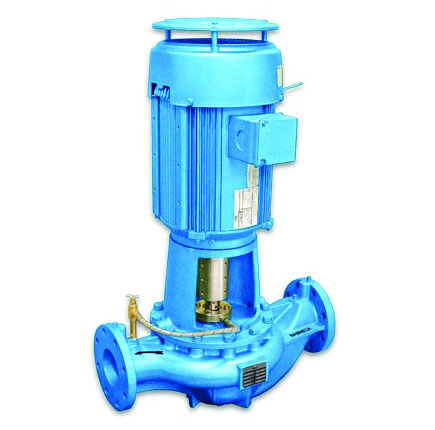

Vertical In-Line
BVL Series
Technical data:
Discharge sizes from 1.5″ to 14″
1 up to 500 HP
Flows up to 12,000 GPM
Heads up to 560 ft
Working pressure 175 PSIG
Fully enclosed, dynamically balanced impeller
Standard features:
Same-size suction / discharge connections
Short shaft design
Small installation footprint
Low / reduced noise
Applications:
Air conditioning
Condensed water
Chilled water
Service water
Cooling towers
Markets:
General industry
Wastewater
Plumbing
HVAC

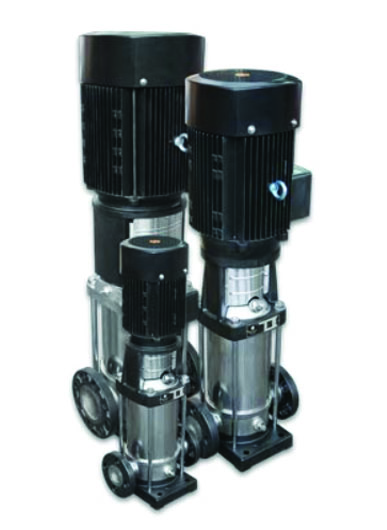

Vertical Multistage
HMV Series
The HMV Series pumps are designed to conveniently be installed directly into the piping system with the same diameters and the outlet and inlet are at the same level. The HMV Series can handle several types of liquid media at different flow rates, pressures and temperature ranges.
- 1 HP up to 75 HP
- Totally enclosed fan-cooled
- Three-phase, 3500 RPM
- 230/460 volts, 60 Hz
- IP55 protection class
- Class F insulation
Operating Conditions
- Thin, clean, non-flammable and non-explosive liquid, free of granules and fibers.
- Liquid temperature: 5 °F ~ 248 °F
- Ambient temperature up to 104 °F
- Height up to 1000 ft
Typical Applications
- Water filtration and transport
- Fire fighting system
- Refrigeration and air conditioning system
- Irrigation
- Supply of liquids such as oil, alcohol, acids, alkalis, among others
- Water treatment
BMV/BMVF Series
Premium Efficiency Motor
- Totally enclosed, fan-cooled, standard
efficiency. - 2 pole, 3 phase, 60 Hz, 230 / 460 volt
- IP55 protection class.
- Class “F” insulation.
Operation Conditions
- Thin, clean, non-flammable and nonexplosive liquid containing, no solid granules
and fibers. - Liquid temperature: Normal temperature: -15 °C~+70 °, Hot water type: -15 °C~+105 °C
- Ambient temperature: up to +40 °C
- Altitude: up to 1000 m
Submersible Pumps
Barmesa has submersible effluent pumps are ideal for residential, commercial and industrial drainage, decorative fountains and pumping sediment from small drains or a sump. More heavy-duty models, such as the X-Proof, have features such as an explosion-proof motor and the ability to handle spherical solids up to 4″. Barmesa has submersible pump options for demanding applications, such as drainage mining, tunneling, public works, floods, portable utility and more.
