Ampco Pumps Company

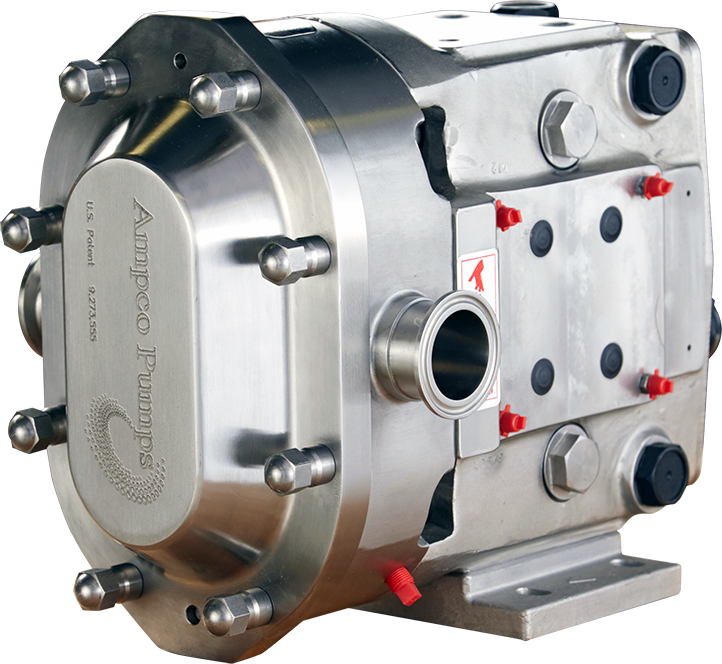

ZP Series (ZP1, ZP1+, ZP2, ZP3, ZP3A)

Ampco’s ZP series pumps feature a stainless steel construction, including a stainless splash plate, which protects bearings during the wash-down process. The ZP series also use helical gears, 4 way mounting, and 17-4ph shafts. An advantage of the ZP1 and ZP2 series is the interchangeability with competing models. The ZP2 has a larger shaft and cleaner rotor nuts making it CIP-able.  The ZP1+ has an enhanced ZP1 design making o-ring maintenance quick and easy. Finally, the ZP3 series uses a front-loading seal design to be completely CIP-able and to make seal maintenance simple. In addition, the new rotor design eliminates all dead zones. The ZP3 series is EHEDG Certified and meets 3A standards.

• Flows up to 310 GPM
• Pressures up to 500 PSI
• Temperature range -40° F to 300° F
• Viscosity range 1-1,000,000 cP

ZP4 Compact

The NEW Ampco ZP4 and its compact design are perfect for sanitary low-flow and dosing applications. The compact design of the ZP4 delivers the accuracy, reliability and efficiency that you expect from a positive displacement pump.

The ZP4 separates itself from other sanitary pump options in this category because of its ZERO rotor to rotor contact design and durable stainless steel construction.
The ZP4 circumferential piston pump is designed to reduce any possibility of product zone contamination from pump wear.

• Couples directly to a Servomotor
• ZERO rotor to rotor contact
• NO wear parts in the product zone
• Self-priming
• Perfect for handling sensitive liquids with particulate
• Front-loading seal design for ease of maintenance and clean-up
• Non-galling Alloy 88 rotors
• 316L stainless steel body
• 304 stainless steel gear case

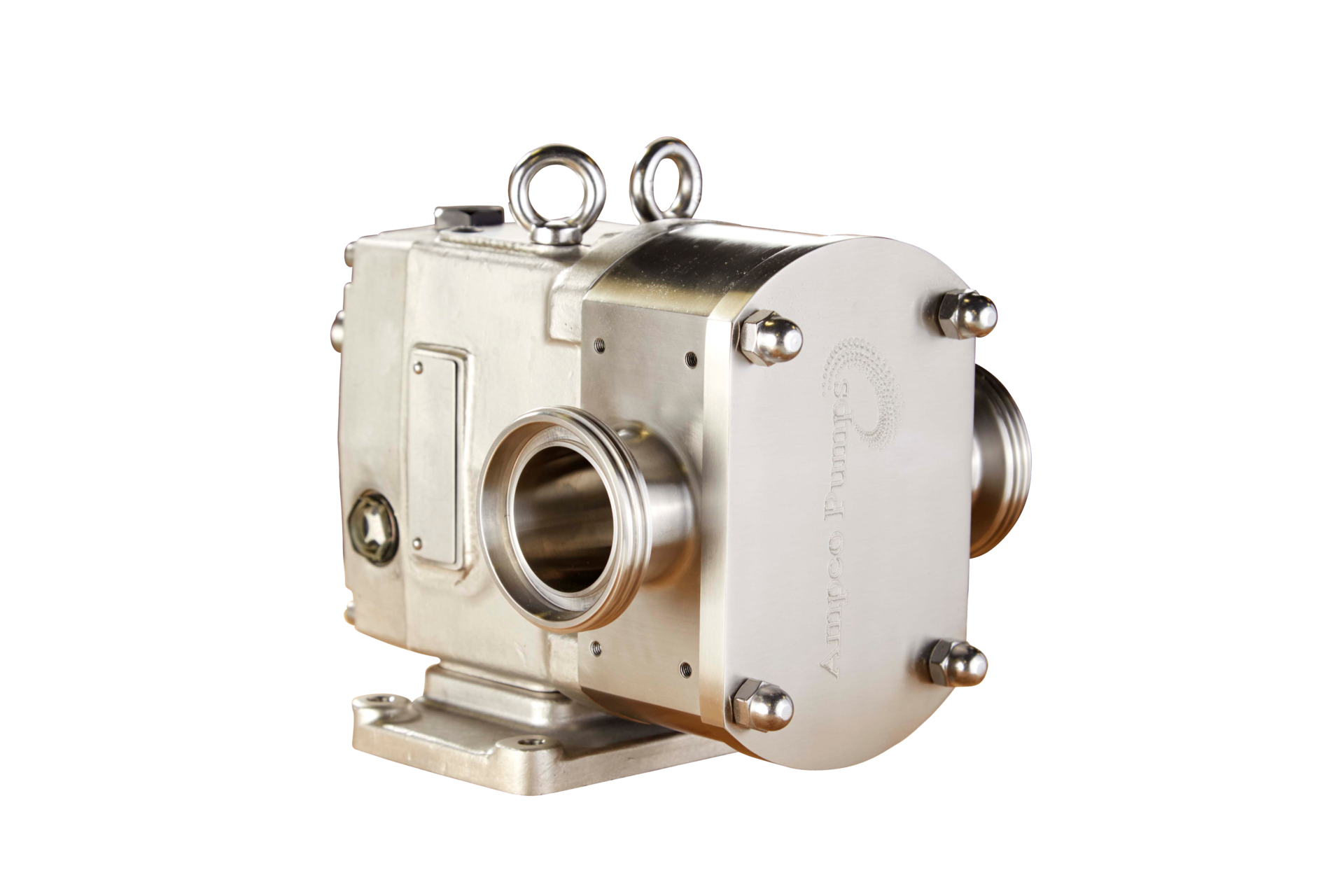

AL Series

The AL series is a rotary lobe pump with a stainless steel gear case and front loading seal design, which enables easy maintenance and enhanced SIP-ability. AL pumps conform to 3A sanitary standards and are EHEDG certified. Seal choices include: double mechanical, mechanical seal with flush, double lip seal, triple lip seal, O-ring and double O-ring. Heating and cooling jackets for temperature sensitive processing are available.

• Flows up to 230 GPM
• Pressures up to 290 PSI
• Viscosity range 1-1,000,000 cP

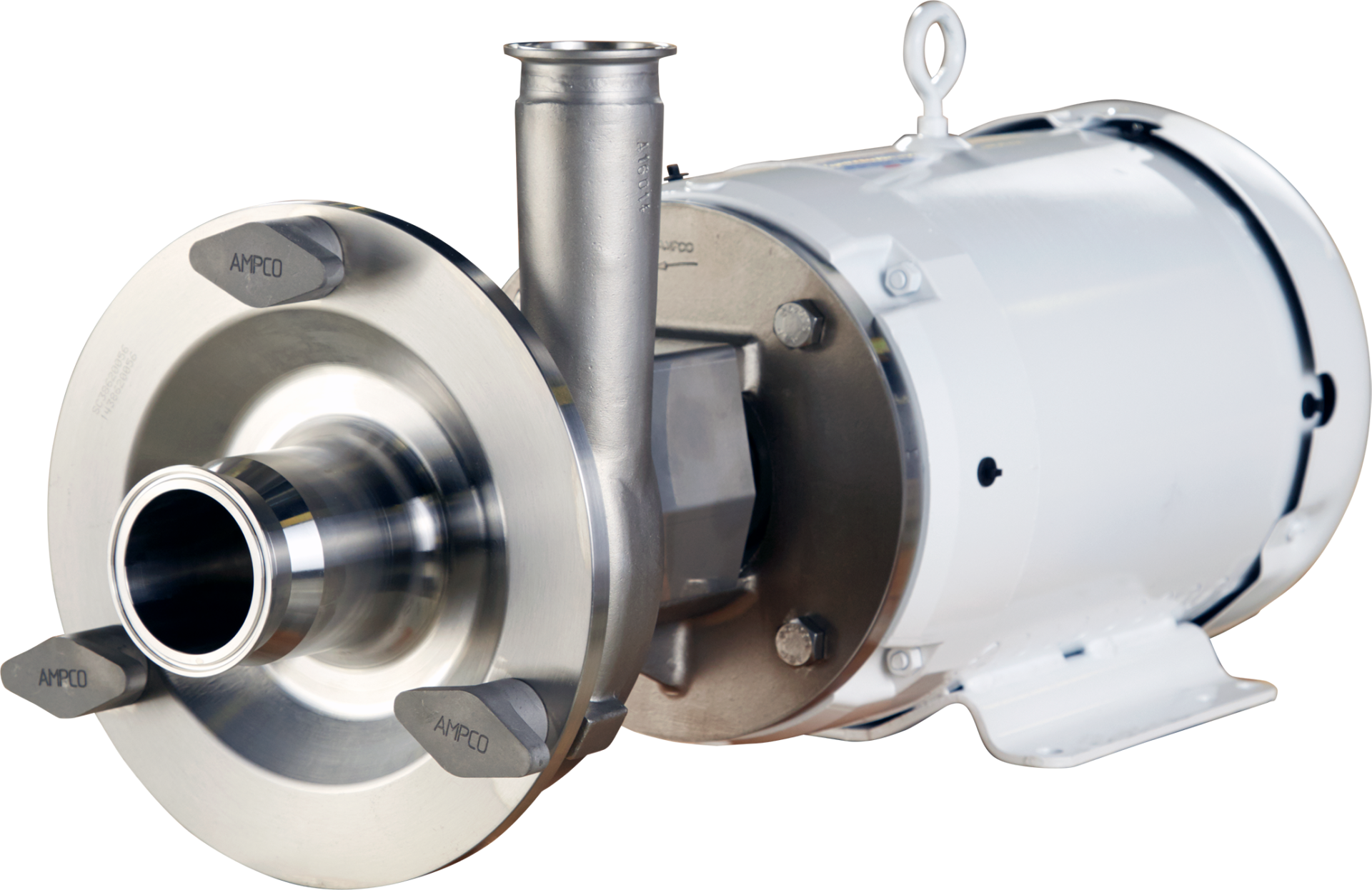

LC/LD/LF/LME/LH Series

Ampco’s L series centrifugal pumps designed for all Sanitary applications and requirements including food and beverage, CIP, dairy, cosmetic and pharmaceuticals. The L series pumps consist of 316L and 304 stainless steel construction and conforms to all 3A sanitary standards. Pump options include LC parts interchangeability, LD double mechanical seals, LF frontloading seal design, LME metric pump, LH high inlet pressures up to 600 PSI. The balanced impellers and tight manufacturing tolerances add to the efficiency of this durable line of pumps.

• Models: 64
• Pressures up to 600 PSI
• Flows up to 1800 GPM
• Max Viscosity: 1200 cP
• 3 Seal Options

SP Series

Ampco’s SP self-priming pumps are well suited for CIP return applications as well as drum & tank emptying capabilities. SP include a 304 Stainless Steel adapter, single or double mechanical seals, as well as 3A sanitary standards compliance. Vane impellers and tight tolerances give SP pump ability to handle fluids with entrained air. Designed to handle entrained air conditions while maintaining specified performance and efficiency levels.

• Models: 4
• Pressures up to 150 PSI
• Flows up to 630 GPM
• Max Viscosity: 1200 cP
• 2 Seal Options

SLH-4G/SLH-4U Twin Screw Pumps

As the first worldwide twin screw pump supplier, Bornemann introduced the hygienic SLH design of twin screw pumps in 2004 to the Food & Pharma industries. The design is based on 150 years of proven technology from Bornemann’s industrial twin screw pumps. This experience aligned with the hygienic requirements of EHEDG and 3A Sanitary Standards makes the SLH the world leader in sanitary twin screw pump technology. The SLH Series pumps are self-priming and offer low pulsation, low noise level, dry-running potential, and constant flow at varying pressures & volumes.

• Flows up to 1,321 GPM
• Pressures up to 362 PSI
• Viscosity range 1-1,000,000 cP
• Temperatures up to 392° F

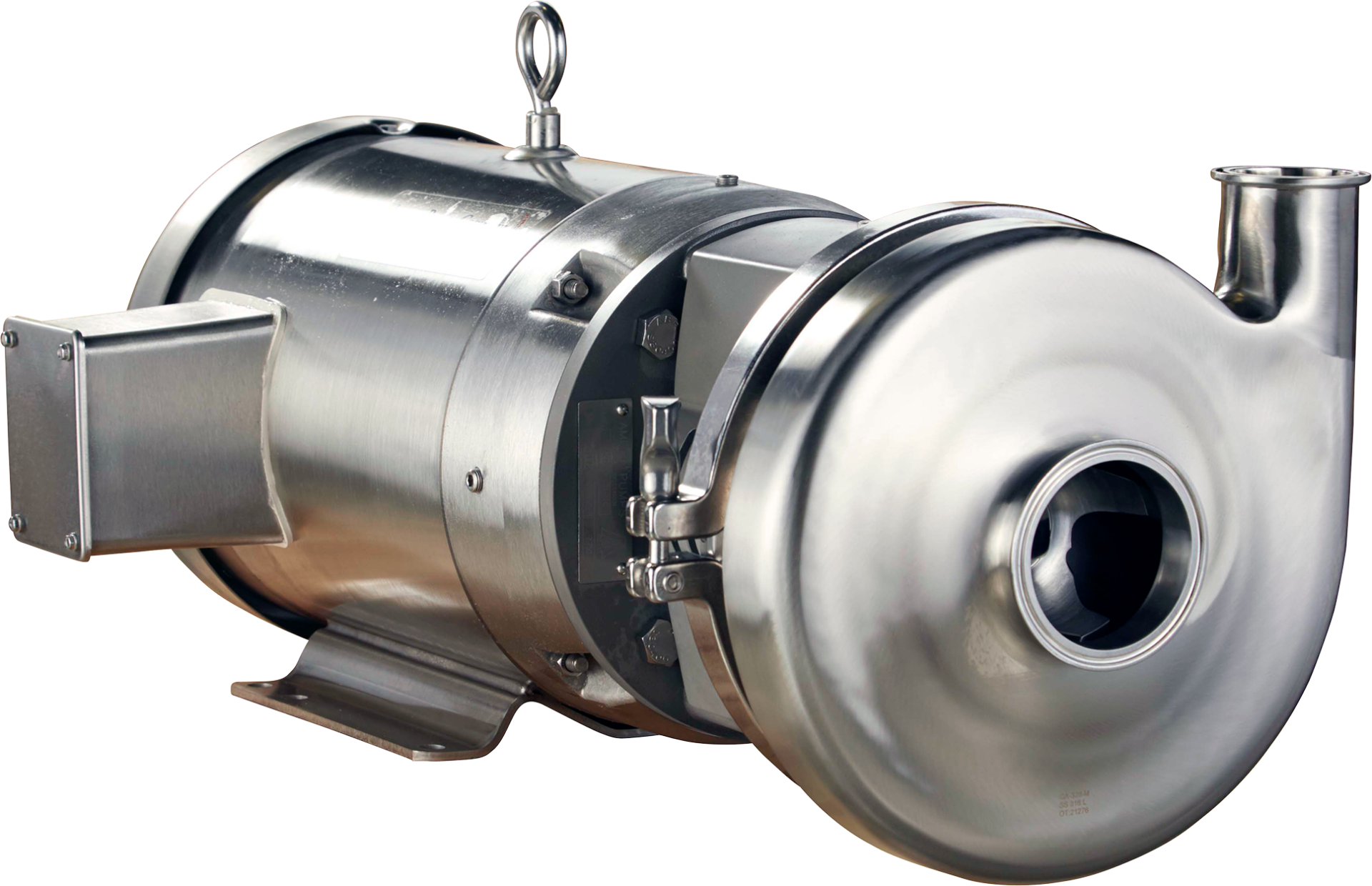

AC/AC+ Series

The AC/AC+ series centrifugal are cost-effective pumps designed to fit sanitary applications. Suitable with beverage, juice, dairy and pharmaceuticals, this pump provides competitor parts interchangeability as well as improved characteristics. Built from 316L stainless steel including stainless steel backplate, impeller, and stub shaft along with 304 Stainless Steel adapter. Hydraulic characteristics and external dimensions are maintained for ease of replacement. The AC/AC+ Series is a true centrifugal workhorse.

• Models: 10
• Pressures up to 60 PSI
• Flows up to 920 GPM
• Max Viscosity: 1200 cP
• 4 Seal Options
• One Week Delivery

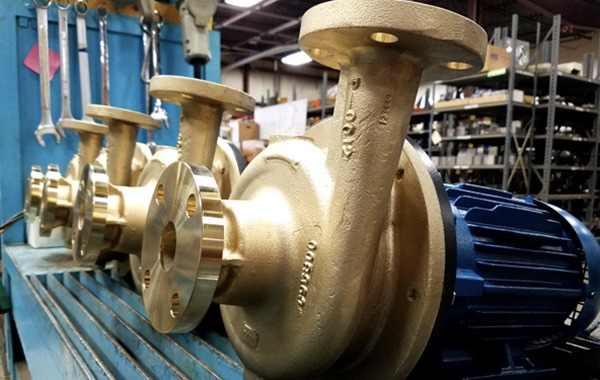

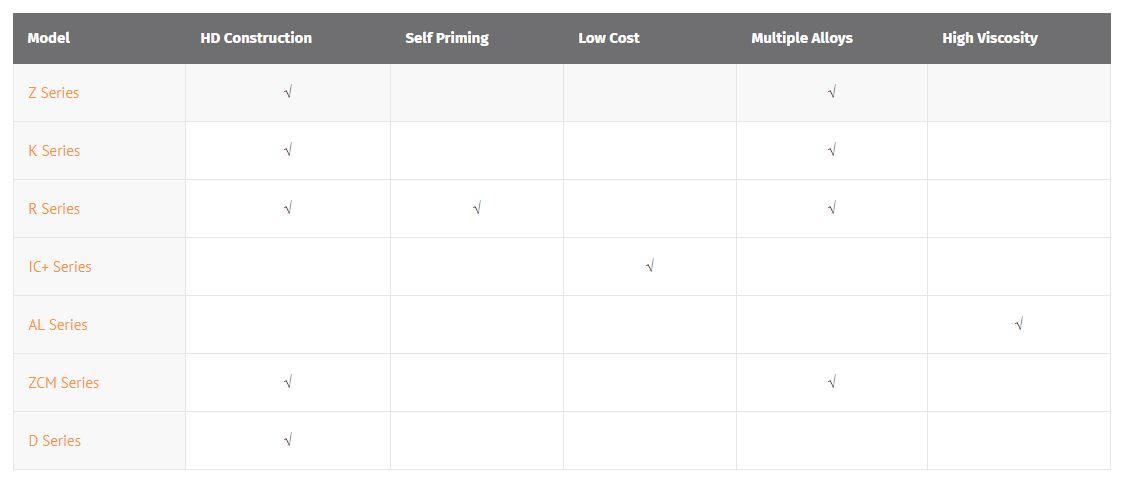

Marine and Industrial Solutions

As a division of AMPCO METAL, Ampco Pumps began producing industrial centrifugal pumps for saltwater applications in 1948. The first pumps available were the Z, K, and R Series in nickel aluminum bronze. Now nearly 60 years later, Ampco offers a variety of specialty pumps including the Z Series, K Series, R Series, IC+ Series, AL Industrial Series, ZCM Series and D Series designed to match highly corrosive, ABS approved, and industrial applications.

• Z Series high flow pumps shine in applications where corrosion resistance is of the utmost importance.
• K Series high efficiency pumps have NPT threaded connections and are close-coupled to NEMA 56J frame motors.
• R Series self-priming marine industrial pumps are capable of self-priming up to 25ft/7.6m.
• IC+ Series centrifugal pumps are a cost effective solution for industrial applications where cast iron pumps are not recommended.
• AL Industrial Series rotary lobe pumps has a 316L Stainless Steel construction and non-contacting lobe design.
• ZCM Series is the metric version of the ZC2 Series and is built using IEC B35 motors that are CE compliant.
• D Series is a closed impeller style pump that runs quietly and efficiently. \

Brewing & Celler

All Ampco products are designed to deliver greater efficiency, enhanced performance, and simplified maintenance for brewing and dry hopping. The ROLEC DH, Wine & Must Cart, Cellar Cart and CB+ Craft Brew Pump are all ideal for small to mid-size craft breweries.

• ROLEC DH: The ROLEC DH45, ROLEC DH90 and ROLEC DH250 models offer small to large scale breweries a safe and efficient way to dry hop beer. The ROLEC DH units are not just for hop induction, they can be utilized to induce fruit, coffee, spices, nuts, honey, maple syrup and more. The induction options are limited only by the brewers creativity.
• CB+ Craft Brew Pump: Specifically designed for the craft brewing industry to allow brewers to focus on creating their next signature beer rather than deal with leaking pumps. Available in 8 model sizes, flow rates up to 920 GPM, can handle pressures up to 130 PSI and has a max viscosity of 1,200 cP.
• Cellar Cart: Made up with an Ampco AC+ Series Pump, 316L Stainless Steel Construction, 304 Stainless Steel Adapter, Dynamically Balanced Impeller, 316L Stainless Steel Shaft, NEMA 4X VFD and Polypropylene Wheels.
• Wine & Must Cart:  Made up with an Ampco ZP1 Positive Displacement Pump, NEMA 4X VFD, 304 Stainless Steel Gearcase, 316L Stainless Steel Wetted Parts, Alloy 88 Non-Galling Rotors, 17-4ph Stainless Steel Shaft, Helical Gear and 10″ Foam Filled Wheels.

Inline Mixers & Blenders

The applications for inline mixers and blenders are limitless.  Products requiring the highest shear levels will benefit from the SHEAR-max high shear mixer, capable of mixing and efficiently pumping product with its hybrid impeller design.  Lower shear requirements can be met with the SBI or SBH inline blenders. Product options include sanitary and 3A Certification, washdown, CIP-able, chemical duty and more.

• SBH/SBI: SBH High-Shear Blender is based on the LF Series pump design and offers multiple front loading seal options. SBI Shear Series pumps can move product and create considerable pressure by way of a hybrid impeller. Manufactured and assembled in Glendale, Wisconsin.
• SHEAR-max: Combination Integrated Impeller and Dynamic Shear Teeth, Pump and Blend in a Single Stage, Machined from 316L bar stock, 304 Stainless Steel Adapter, Dynamically Balanced Impeller, 316L Stainless Steel Shaft

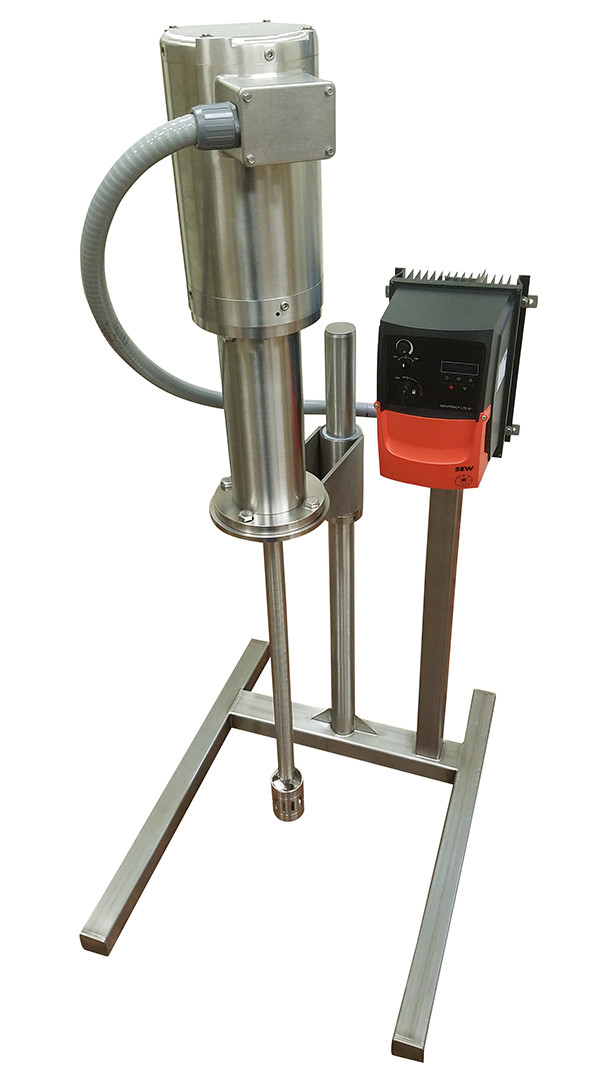

• JET-shear: Emulsion to less than 10 microns, max volumes up to 1000 gallons for self-mixing, Stainless Steel mixer shaft, mixing heads can be interchanged, designed to 3A, CIP-able and multiple mounting configurations.
• Jet-Mix: Rapidly mix, disperse, and suspend solids in liquids covering a wide range of applications in food, personal care, clean chemical, and pharmaceutical industries. The modular construction of the JET-mix makes it ideal for a wide viscosity range and batch sizes up to 6,000 gallons in open or closed tanks, drums, and tote processing.

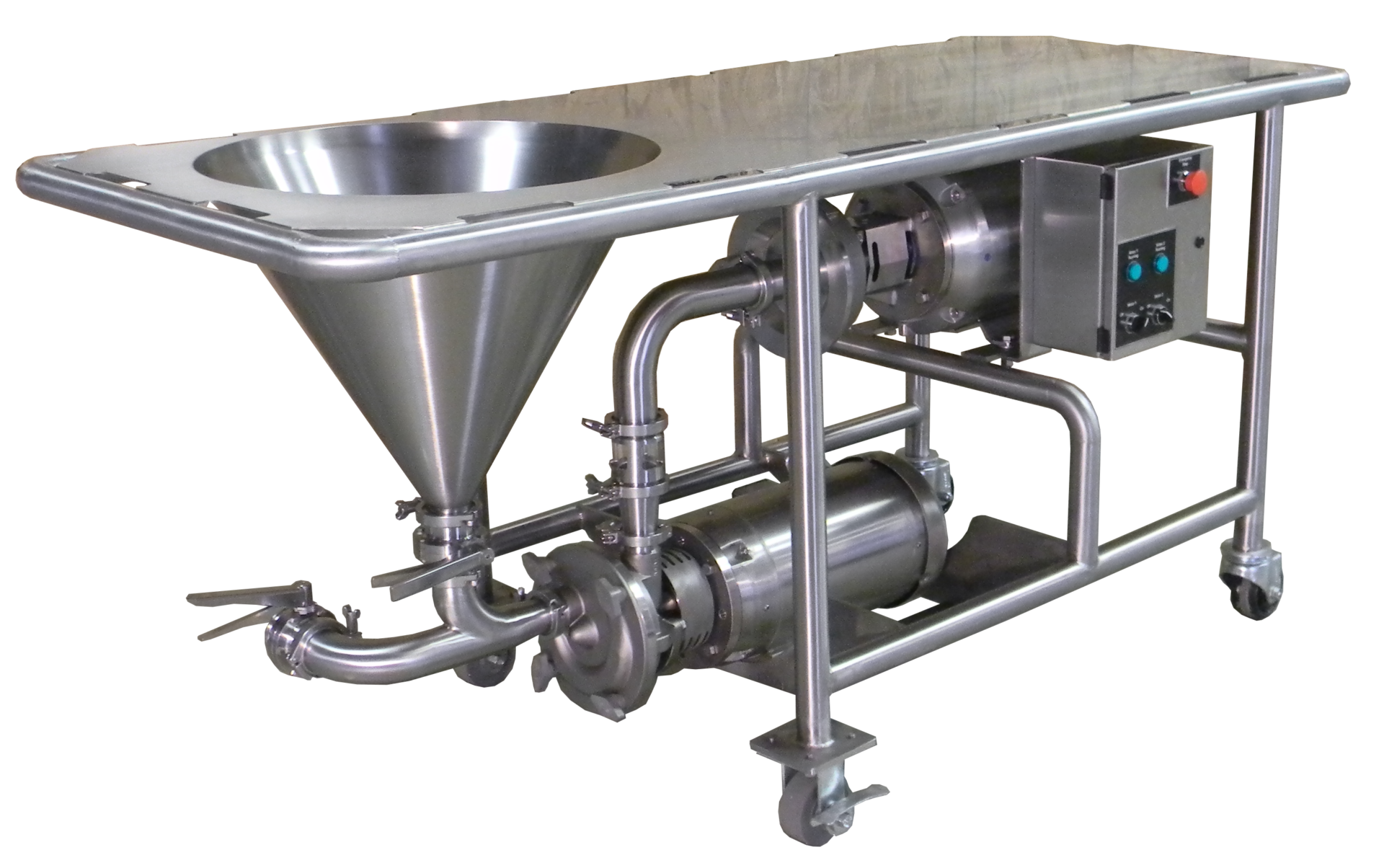

PM SYSTEMS

Ampco’s PM Systems encompass a line of products designed to mix and blend powders with liquids efficiently while improving the texture and dispersion of the finished product. These mixing and blending systems are serving industries world-wide including food and beverage, chemical, health and beauty, bio-pharmaceutical and industrial applications. All PM systems are sanitary and 3A Certified.

• POWDER-max: Model SP Liquid Ring Pump, Model SBH Shear Blender, 304 Stainless Steel Base Material, 316L Wetted Parts, Dual Motor Starter – NEMA 4X, Stainless Steel Casters, Powder Control Valve, Fluid Control Valve, 5 Models.
• SIMPLE-blend: Model SP Liquid Ring Pump, 304 Stainless Steel Base Material, 316L Wetted Parts, Motor Starter – NEMA 4X (VFD Upon Request), Stainless Steel Casters, Powder Control Valve, Fluid Control Valve, 1 Custom Model.
• DRY-blend: AC+ Centrifugal Pump, 316L Stainless Steel Wetted Parts, Customizable, Carts, Tables, Belt Drive with Base, Controls, Easily Integrated into Existing Process Systems, 4 Models.
• SHEAR-blend: Combination Integrated Impeller and Dynamic Shear Teeth, Pump and Blend in a Single Stage, Cast and Machined, 304 Stainless Steel Adapter, Dynamically Balanced Impeller, 316L Stainless Steel Shaft, 2 Models.

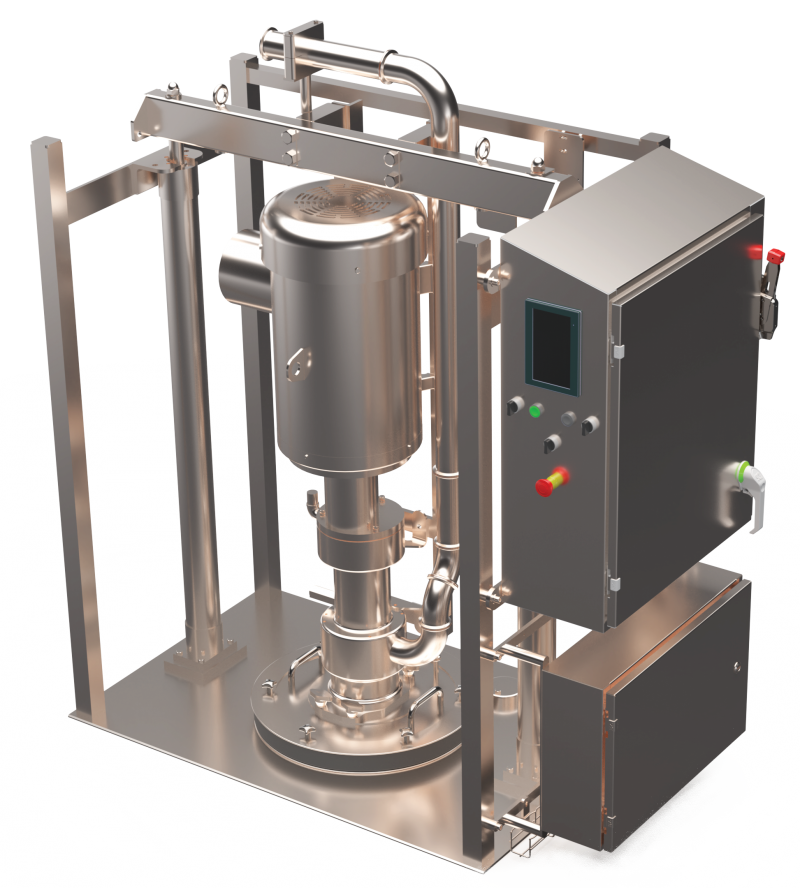

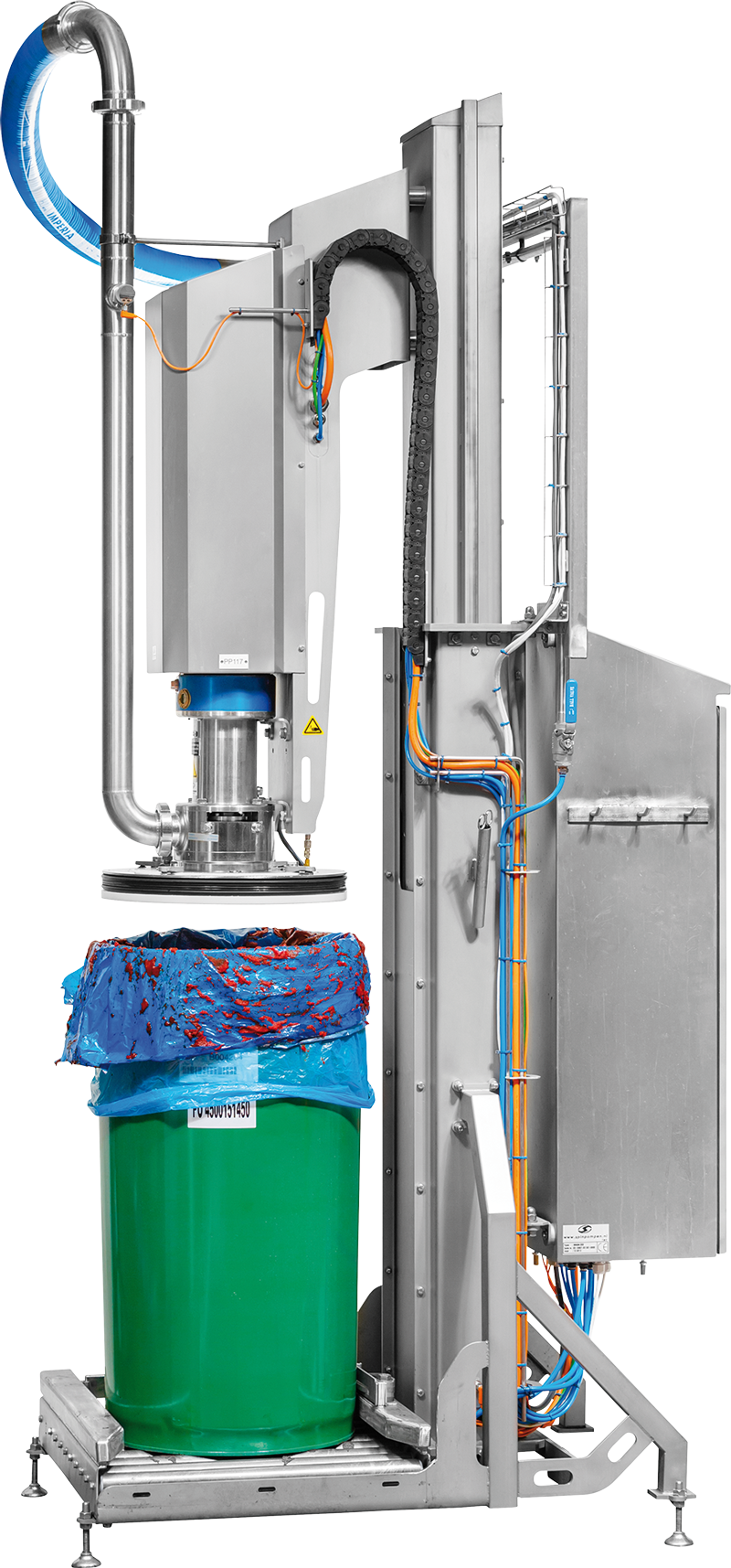

Binem Drum Unloading System

The BINEM Drum Unloading System was designed to maximize hygienic processing while reducing waste by utilizing a Bornemann twin screw pump. This technology delivers optimal performance and efficiencies compared to traditional air-operated drum unloading equipment.

Customizable dosing capabilities ensure consistency for every batch and safeguard remaining product from unsanitary exposure between uses. The BINEM Drum Unloading System easily pairs with control devices so you can pump in precise amounts of tomato paste, meat paste, chocolate spread, cookie filling, peanut butter and more.

ADU Drum Unloading System

Unload drums quickly and easily with up to 99% or better product removal when you use the ADU from Ampco Applied Products. The ADU utilizes the Bornemann SLH-4G sanitary twin screw pump paired with an inflatable drum seal suction head that stays sealed to the wall of the drum as it moves down unloading the contents. The SLH-4G and included cleaning module are fully CIP-able.

The ADU can unload a wide range of products with viscosities from 1-1,000,000cP with ease. The gentle conveyance and low pulsation operation of the SLH-4G maintains product integrity as the contents are emptied.

The ADU sanitary drum unloading system offers greater energy efficiency when compared to air-driven units. The main system utilizes an electrically powered pumping system and controls, requiring only a small amount of air to lift/lower and seal the bladder to the drum.

Drums can be quickly positioned for unloading from the ground or from a pallet via the drum stops on the unloading deck and a v-block stop is available for pallets.

The ADU’s sturdy modular design offers affordability and ease of maintenance.

Homogenizers

For more than 20 years HST has been manufacturing quality Homogenizers. Their units are trusted in many industries for creating smooth, consistent mixtures and for their exceptional quality and reliability.

Ampco offers the Lab/Pilot Series, HL Series, and HLI Series of HST homogenizers to suit your specific needs, and keeps a comprehensive stock of repair parts and certified mobile service technicians to ensure your equipment stays running smoothly.

Lab/Pilot Units

HST laboratory and pilot plant scale homogenizers play a crucial role for research and development teams in the development and optimization of homogenization processes.

HL Series

HST HL Series homogenizers are robust and based on the traditional time-honored (pre-2000) Gaulin design that is known for quality and longevity.

HLI Series – Integrated

HST HLI Series integrated homogenizers offer reduced water consumption to minimize ecological impact and improved efficiency for enhanced product quality.

HLE Series – Economic

HST HLE Series economic homogenizers are industrial-grade machines designed to deliver powerful and efficient homogenization for a wide range of products.
